150 / 300mm Cable Tray Cold Roll Forming Machine With GI , Carbon Steel Raw Material

Name: 150 300mm Cable Tray Cold Roll Forming Machine With GI Carbon Steel Raw Material
Brand: TECHWELL
Price: 1 USD

Buy cheap 150 / 300mm Cable Tray Cold Roll Forming Machine With GI , Carbon Steel Raw Material product

Brand Name : TECHWELL

Model Number : TW-CBT300

Certification : CE, ISO

Place of Origin : China

MOQ : 1 Set

Price : Contatc us

Payment Terms : 40% T/T in advance, 60% T/T before shipment

Supply Ability : 10 Sets

Delivery Time : 60-80 Working Days

Packaging Details : Standard Packing

Raw material : GI or Carbon Steel

Coil thickness : 1.0-2.5mm

Material of Shaft : 40Cr high grade Steel tempering treatment (HB220-260)

Shaft diameter : ￠80mm

Roller Material : High Grade GCr15 Steel, And Roller Surface With Hard Chrome ≥ 0.05mm

Machine Frame : High Grade Steel Welded And Tempering Treatment

Contact Now

150 / 300mm Cable Tray Cold Roll Forming Machine Exported To Australia With GI, Carbon Steel Raw Material

Main Specifications

NO		Technical Specifications	Remark
1	Hydraulic Decoiler	Decoiler Type	Hydraulic decoiler
		Weight capacity of decoiler	7 Ton
		Electric releasing coil, hydraulic expanding, tension
		Motor power	5.5KW
		Hydraulic system power	4.0KW
2	7 Roller Leveling Machine	Leveling device	2 Rollers pinch feeding, 7 rollers leveling
		Leveling roller diameter	about Φ 90mm
		Leveling roller material	high grade 40Cr
		Heat treatment of leveling roller	surface Hi-frequency quench treatment
		Leveling motor power	4.0KW
3	Servo Feeding Machine	Servo motor power	3.0KW
3	Servo Feeding Machine	To exact accurately feed the sheet into punching machine according to the set program
4	Hydraulic Pre-Punching Machine	Punching Die	Cr12 Mov, quenching process
		Punching Die size	according to drawing
		Punching power	11KW
		Punching controlled by PLC
5	Main Roll Forming Machine	Raw material	GI or Carbon Steel
		Coil thickness	1.0-2.5mm
		Roller stands	approx 18 stations
		Type of forming machine	Chain transmission
		Roller material	high grade GCr15 steel, and roller surface with hard chrome ≥ 0.05mm
		Shaft diameter	￠80mm
		Material of Shaft	40Cr high grade Steel tempering treatment (HB220-260)
		Motor power	15 KW
		Cutting type	Hydrauluic cutting
		Hydraulic power	15 KW
		Forming speed	about 0-15m/min
6	Hydraulic Cutting & Hydraulic Station	Cutting type	Hydraulic Post-cutting
		Cutting blade material	Cr12Mov, Quench treatment,HRC58-62
		Hydraulic power	15 KW
		Length measuring	Automatic encoder length measuring
		Tolerance of length	+/-1.5mm for each piece end product
		Encoder	OMRON Brand

Main Components

Hydraulic Decoiler --------------------------------------------------------- 1 Unit
Leveling Device ------------------------------------------------------------ 1 Unit
Servo Feeding -------------------------------------------------------------- 1 Unit
Hydraulic Pre-Punching -------------------------------------------------- 1 Unit
Main Roll Forming Machine ---------------------------------------------- 1 Unit
Hydraulic Cutting ------------------------------------------------------------1 Unit
PLC Electrical Control Board -------------------------------------------- 1 Unit
Hydraulic Stations ---------------------------------------------------------- 1 Unit
Run Out Table --------------------------------------------------------------- 1 Unit

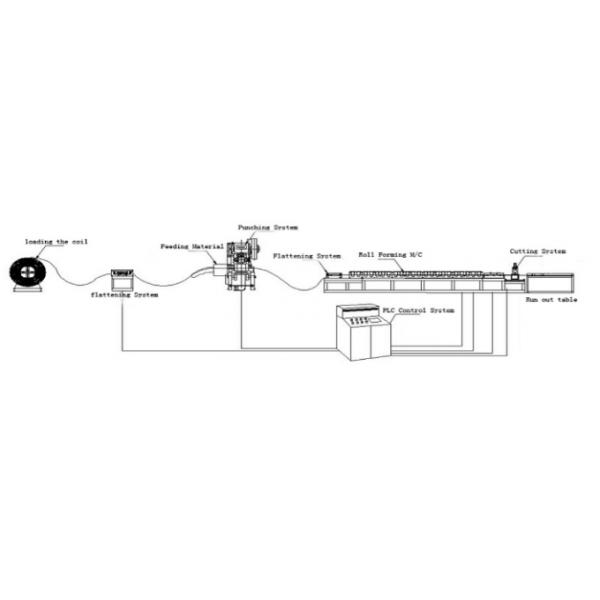

Working Flow Chart

Decoiling --- Guiding & Leveling --- Punching --- Roll Forming --- Hydraulic Cutting --- Run-out Table

150 / 300mm Cable Tray Cold Roll Forming Machine With GI , Carbon Steel Raw Material

Competitive Advantages

High Quality
Reliable
Durable
Reasonable Price
Good after Service
1 Year Warranty
More Than 10 Years Experience
